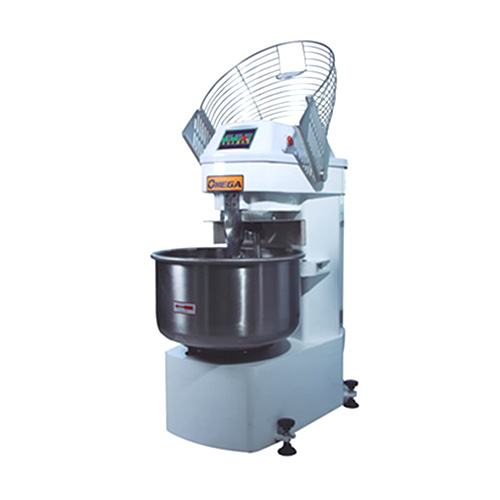

Fixed Bowl Spiral Dough Mixer

Product Name: Fixed Bowl Spiral Dough Mixer Application: Food industry Country Of Origin: China Condition: New Classification: Dough Mixer With the largest range of capacity from 25 till 300kg, this line offers nice opportunities to meet customer's request for all type of productions...

Send Inquiry

Parameter

Product Name: Fixed Bowl Spiral Dough Mixer
Application: Food industry
Country Of Origin: China
Condition: New
Classification: Dough Mixer

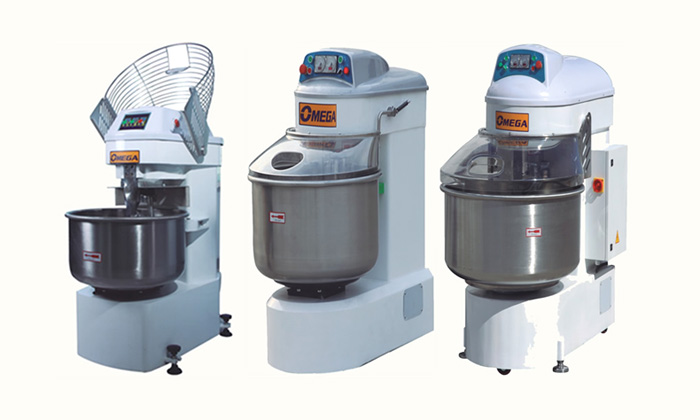

With the largest range of capacity from 25 till 300kg, this line offers nice opportunities to meet customer's request for all type of productions (corner's bakers, supermarket, industrial bakeries).

All our mixers have two motors and the possibility of reversing bowl rotation in one speed. Two electronical timers control all the machine function. The time which has elapsed (minutes & seconds) can be easily read from the digital display.

At the end of a work cycle, the timers return to the values initially set for the kneading cycle which has been automatically stored in memory.
Due to belt transmission of power, the machine noise level is quite low.


1.Parameters of SMF series (1):

Model

Dough
Capacity
(kg)

Flour
Capacity
(kg)

Water
Capacity
(kg)

Bowl
Dimensions
φ x H (cm)

Spiral power
1st-2ndspeed
(kW)

Bowl
power
(kW)

Machine
Dimensions
W x D x H (cm)

Weight
(kg)

SMF25

5-25

3-15

2-10

50x25

0.8-2.2

-

49x82x109

180

SMF50

8-50

5-30

3-20

55x30

0.9-4.0

-

59x108x127

260

SMF100

8-100

5-62

3-38

70x40

2.9-4.75

0.75

72x116x132

480


2. Parameters of SMF series (2):

Model


kg

SMF 130

SMF 160

SMF 200

SMF250

SMF 300

Dough capacity (min./max) *


kg

10/130

10/160

10/200

15/250

20/300

Flour capacity (min./max) *


lt

6/80

6/100

6/125

9/150

12/185

Bowl volume


rpm

205

260

285

380

470

Spiral turns1st/2nd speed(50/60hz)


rpm

92.5/185

92.5/185

92.5/185

92.5/185

92.5/185

Bowl turns speed (50/60hz)


kw

15

15

15

15

15

Motor power 1st speed


kw

3

4

4

5

5

Motor power 2nd speed


mm

6

9

9

11

11

Spiral bar diameter


mm

48

48

48

58

58

Height from bowl lip


mm

920

950

950

950

950

Total length

D

mm

1678

1867

1867

1960

1960

Total width

C

mm

968

1174

1174

1241

1241

Total height

A

kg

2200/1510

2212/1540

2212/1540

2330/1600

2330/1600

Net weight

H/B

kg

800

880

930

1050

1100

*: capacity determined in view of % liquid/flour equal to 60

Supplied standard equipment:
1515_副本.jpg Bowl, contrast column, safety guard and flour screen made of PP
1515_副本.jpg Two timers setting the working time with automatic by Italy SITEC and theelectrical control components made by SCHNEIDER
1515_副本.jpg Spiral made of stainless steel
1515_副本.jpg Selector for reverse bowl ratation device at 1st speed
1515_副本.jpg Movement transmission through pulleis and GATES belts
1515_副本.jpg Overvoltage and overload motor protection
1515_副本.jpg Tension 380 V-frequency 50 HZ-3 phases, or tension 230 frequency 50 HZ-3 phases, Tension 220 V-frequency 60 HZ-3 phases, Tension 380 V-frequency 60 HZ-3 phases


1515_副本.jpg Stainless Steel Bowl and Spiral Arm
1515_副本.jpg Two Speed Spiral Arm with Automatic Mixing Time Control
1515_副本.jpg Great ability to mix small and large quantities
1515_副本.jpg Bowls are driven by 2 sets of friction wheels running the milled border of the bowls to increase the grip effect
*The technical data, colors and photos of the machinery in our catalogues are not binding. EO reserves the right to change them should this be deemed necessary in order to improve the product, without advance notification.
