Dough Sheeter

Product Name: Dough Sheeter Application: Making various pastries, egg tarts, etc. Country Of Origin: China Condition: New Classification: Bread Forming Machine EO DS series dough sheeter is designed with the particular consideration for use in small to medium sized bakeries, hotels, restaurants...

Send Inquiry

Parameter

Product Name: Dough Sheeter
Application: Making various pastries, egg tarts, etc.
Country Of Origin: China
Condition: New
Classification: Bread Forming Machine

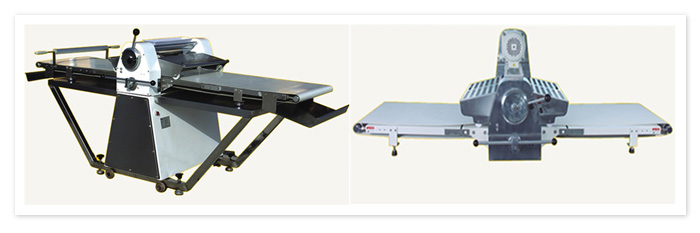

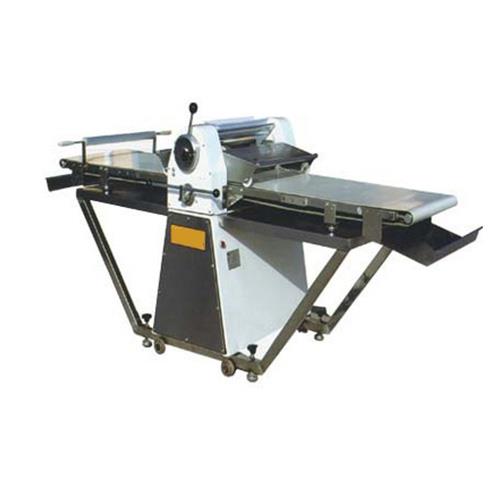

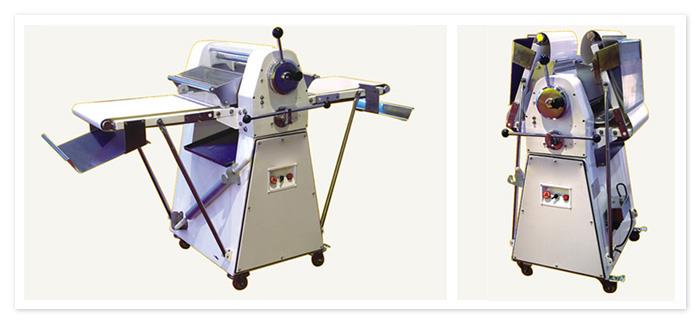

EO DS series dough sheeter is designed with the particular consideration for use in small to medium sized bakeries, hotels, restaurants and pastry shops.

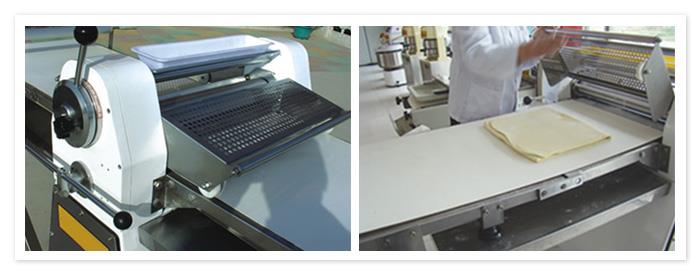

It allows to obtain pastry dough of uniform thickness through the simple adjustment of the rollers. The machine is suitable for sheeting and stretching any kind of dough: yeast, croissants, puffed pastries, danish, flaky pastries, savory dough, soft pastry dough as well as stiff pizza or other kinds of dough to the required thickness.

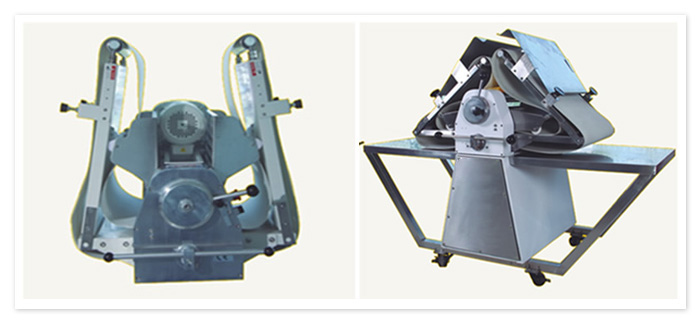

In all the DS sheeters, the conveyor table can be raised up into a resting position, thereby occupying less space within the work area. This position also facilitates effective cleaning of the unit.

The DS sheeters have been developed to be both functional and easy to use. Max roller opening 40mm. Equipped with side handle for the thickness adjustment and with joy-stick for the reversal of the belts motion. Stainless steel structure.Mounted on castors. Two rolling pins included.


Model

Cylinder
lengths
(mm)

Diameter
of cylinders
(mm)

Opening
of cylinders
(mm)

Belt measurements
(mm)

Workin dimensions
WxDxH (cm)

Closed dimensions
WxDxH (cm)

Motor
(kW)

Weight
(kg)

DS420

420



400x1700

170x80x120

70x80x138

0.4

165

DS520

520

80

From 1 to 40

500x2100

210x90x120

70x90x156

0.5

230

DS600L

600

600x3100

320x98x120

200x98x170

0.75

260

DS520T

520



500x2100

210x82x62

75x82x84

0.45

220

*Specifications and design subject to change without notice.

Unique design, sturdy and durable, high efficiency, easy operation.
Non-sticky flour and fast speed, low noise.


1515_副本.jpg Reversible sheeting action by manual models
1515_副本.jpg Handy adjustable roller gap: from 1/32" to 1 1/2" ( 1-40mm) thickness
1515_副本.jpg Capacity of up to 22 pounds (10kg) of dough
1515_副本.jpg The scrapers, built in material in compliance with the alimentary standards, can be removed for cleaning.
1515_副本.jpg Stainless steel protective guard on each side of rollers
1515_副本.jpg Perfect efficiency: the tension of the belts and the position of the cylinders can be easily set to keep the machine in top condition, even after years of work.
1515_副本.jpg Hard chrome polished cylinders help prevent sticking.
1515_副本.jpg Flour reservoir above rollers
